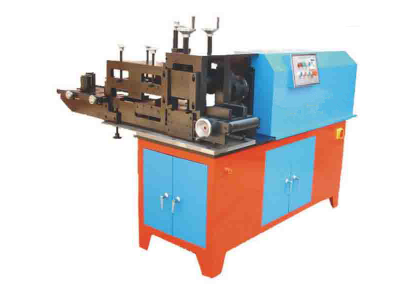

TYH-60鐵藝壓花機 TYH-100鐵藝壓花機
TYH-60 Embossing Machine TYH-100 Embossing Machine
TYH-60和TYH-100是冷壓生產鐵藝用料（煅料）的專用設備，采用進口變頻技術，承載能力大，模具圖案多，配置不同圖案的模具，可將一定規(guī)格的扁鐵、方鋼、圓鋼、方管及異形管輥壓出不同的花紋圖案。TYH-100是加大設備，它比TYH-60加工能力大，可將100×100mm的方管或異型管輥壓出標準立柱（桿）達到高效節(jié)能的效果。
TYH-60 and TYH-100 are the special equipment for cold pressing production of wrought iron materials (forged iron materials), which adopt imported inverter technique with high bearing capacity and various mold patterns and are equipped with different patterns of dies so as to roll form different patterns on flat steel, square steel, round steel, square pipe and special pipe of certain specifications. TYH-100 is oversize equipment with higher processing capacity than TYH-60,thus it can roll form 100×100mm square pipe and special pipe into upright stanchion so as to achieve the high efficiency and energy saving effect..
項目 Item | TYH-60加工能力 TYH-60 Capacities | TYH-100加工能力 TYH-100 Capacities | |
加工材料范圍 Processing Capacities | 扁鋼Flat Steel | 12×3-60×10mm | 12×3-100×10mm |
方鋼Square Steel | 10×10-25×25mm | 10×10-30×30mm | |
圓鋼Round Steel | Ф10-Ф20mm | Ф10-Ф30mm | |
方管Square Tube | 15×15-60×60mm | 15×20-100×80 | |
矩形管 Rectangular Steel pipe | 15×20-60×40mm | 15×20-100×80mm | |
電動機 Motor | 工作電源Electricity,380V,50HZ | ||
功率power,7.5kw | |||
轉速Rotating Speed , 1500r /min | |||
擺線針輪減速機 Decelerator for Cycloidal Pin wheel | 輸出轉速；35r /min Out put rotation speed of main shaft ;35r /min | ||
降速比Gear Ration;1:43 | |||
采用進口變頻技術，無級變速；Adopting frequency acceleration technology introduced from abroad | |||
外形尺寸（長×寬×高）（毫米） External Size (L×W×H)(mm) | 1700×1150×1260mm | 1700×1500×1460mm | |
包裝尺寸（長×寬×高）（毫米） Packing Size (L×W×H)(mm) | 1840×950×1400mm | 1880×1140×1410mm | |
凈重 Net Weight (kg) | 1098kg | 1260kg | |
毛重 Gross Weinght(kg) | 1260kg | 1380kg | |
